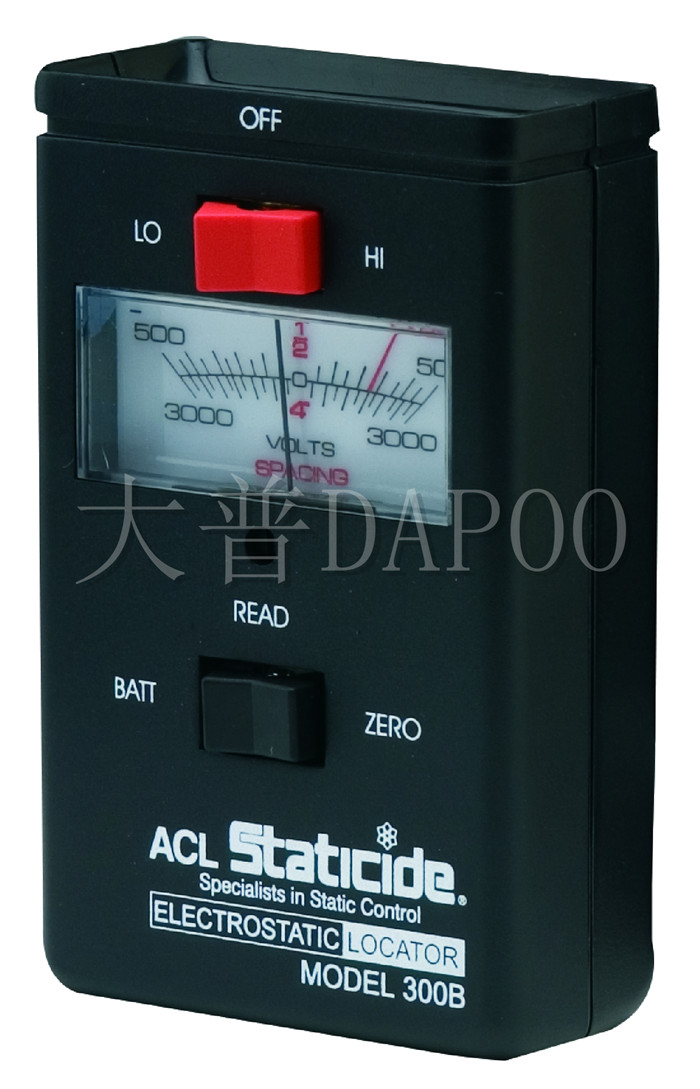

Pointer voltage tester ACL-300B

Pointer electrostatic tester acl-300b

Product model: acl-300b Product Name: pointer electrostatic tester

Detailed parameters

The high-precision, handheld acl-300b can answer the following three basic questions:

1. Is static electricity present? Which surfaces, materials or people are present?

2. How much static electricity?

3. Is static charge positive or negative?

In some electrostatic sensitive fields, such as electronic components manufacturing, assembly area, ultra static room, computer, pharmaceutical and R & D laboratory, operating room, medical equipment factory, printing plant, packaging and production, the instrument is an ideal test method.

The acl-300b is completely integrated without auxiliary probe. In order to reduce the over range error, the instrument is equipped with a nickel plated induction electrode, which can be used in high / low (HI / Lo) gears.

Low (LO) range:

13 mm (0.5 in.) from the measured surface, 0-500 v;

102 mm (4 in) from the measured surface, 0-3000

High (HI) range:

13 mm (0.5 in.) from the measured surface, 0-5000 v;

102 mm (4 inches) from the measured surface, 0-30000 v.
